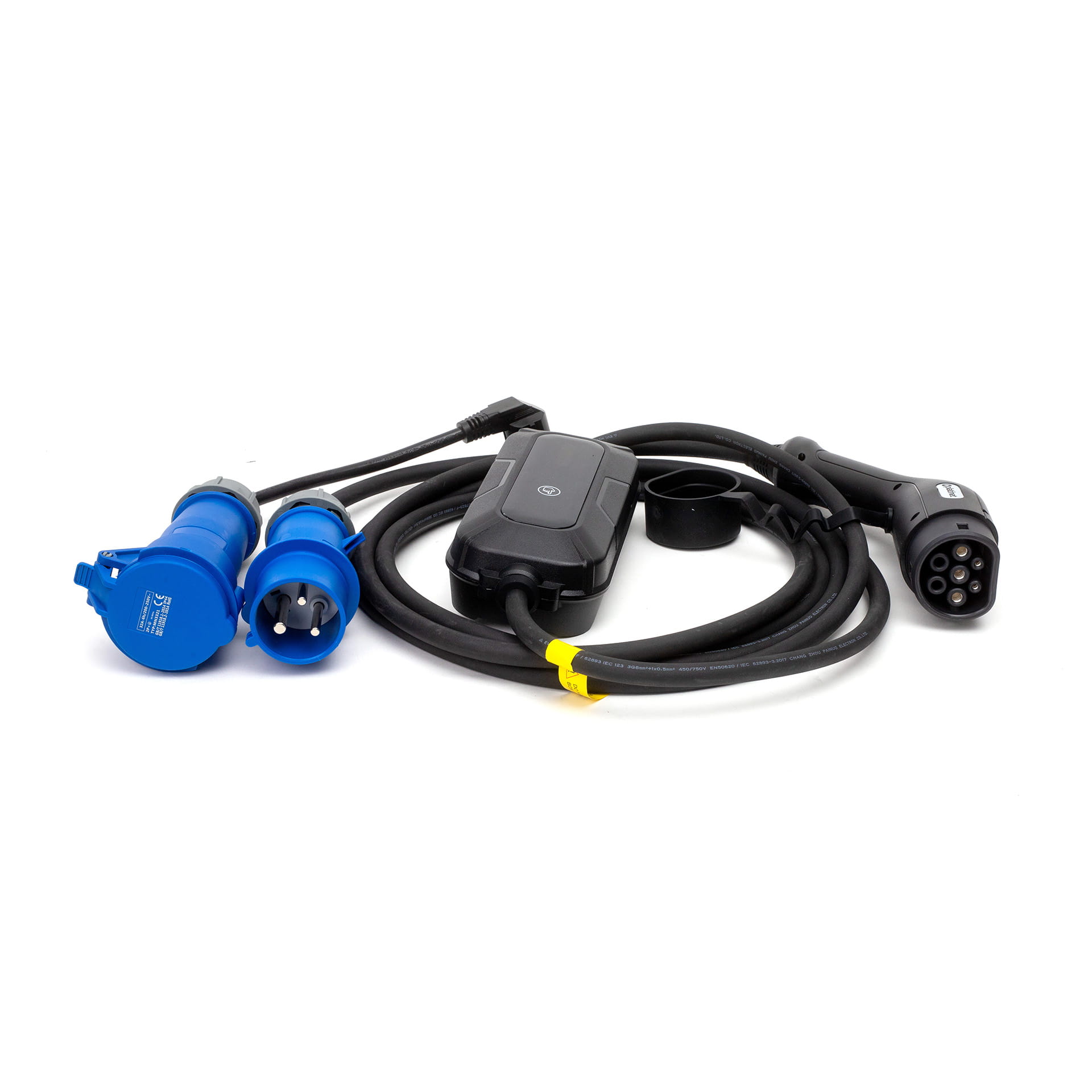

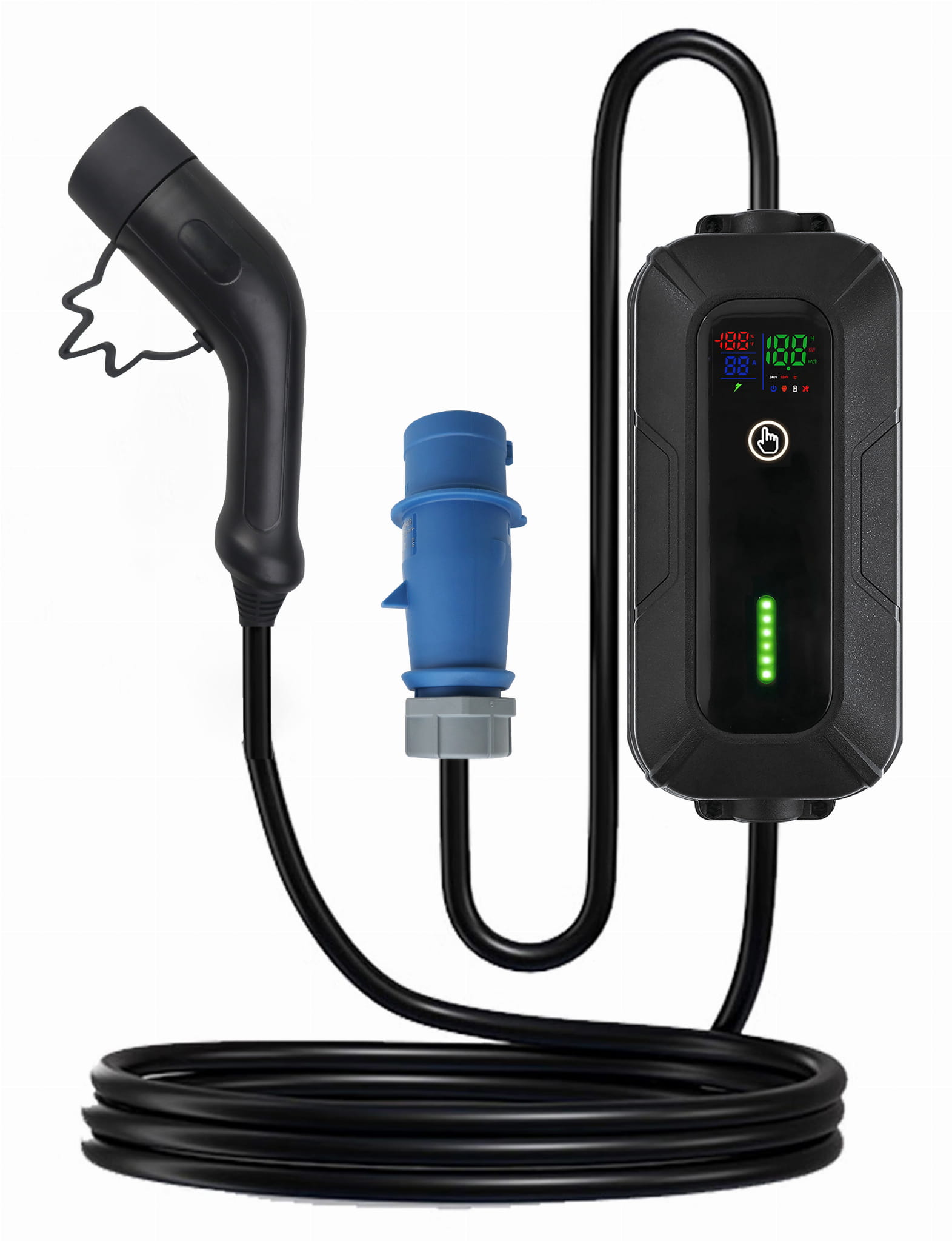

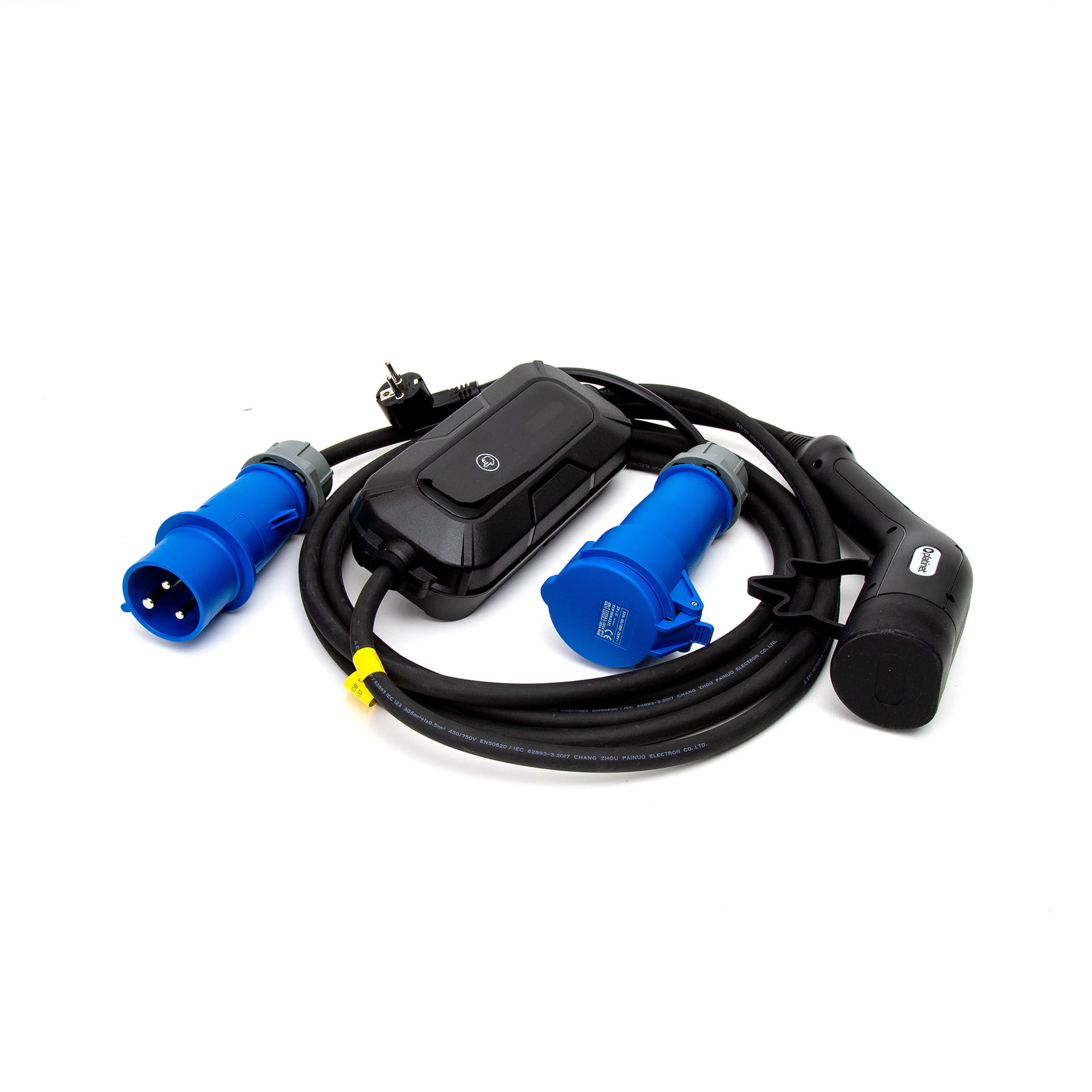

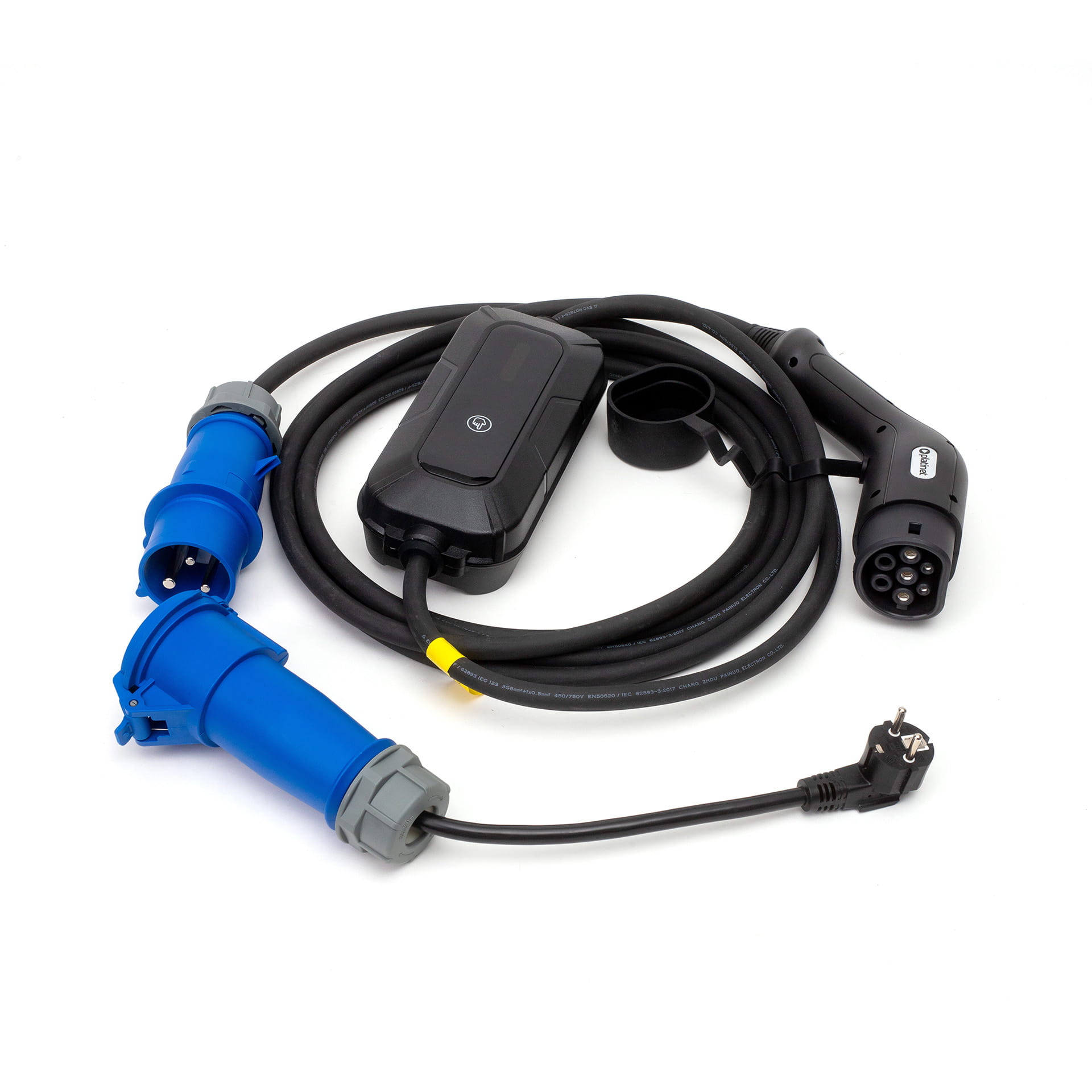

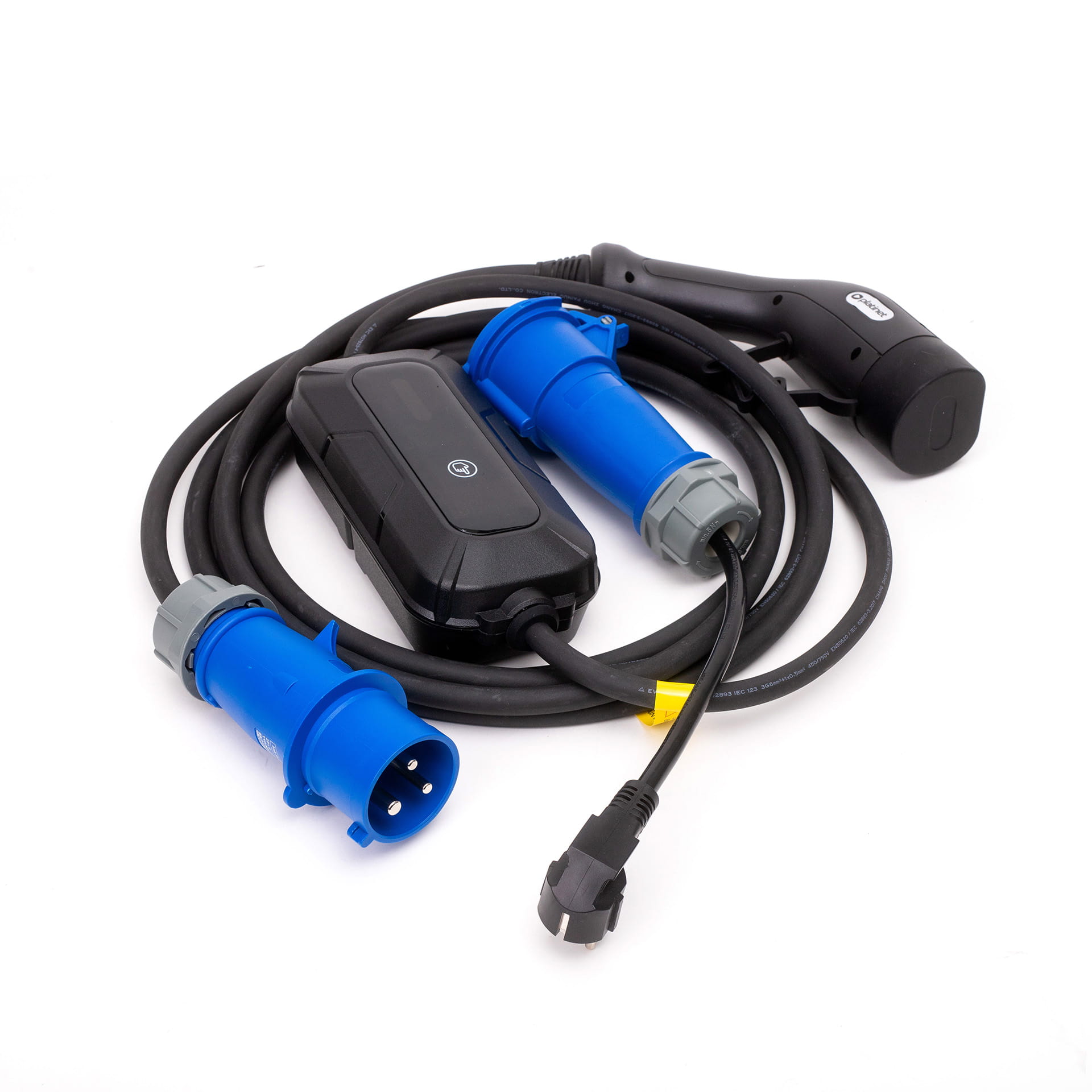

PLATINET PORTABLE CHARGER EV/PHEV AC TYPE 2 8/10/13/16/32A 7,4KW CEE 1F HOME LINE BLACK

Plug & Play - operation is simpler than ever

Thanks to the Plug & Play function, charging is quick and easy - just connect the charging plug to the car, and charging will start automatically.
After charging is complete, simply disconnect the plug from the car.
The charger is designed to ensure safety and reliability during use.
In addition, it is compatible with most electric cars on the market thanks to its universal design.
The 5-meter cable allows you to freely position the vehicle relative to the power source.


Type 2 to Schuko Adapter


This is a great solution that helps you charge your car, motorcycle or other electric vehicle more effectively, even at home, without additional assembly or help from an installer.
The cable has a Schuko plug on one side, and a TYPE-2 plug on the other, thanks to which connecting the adapter to your charger and the mains socket is extremely simple, both at home, in a public place, and when traveling.
Total cable length is 30 cm.


Technical specifications

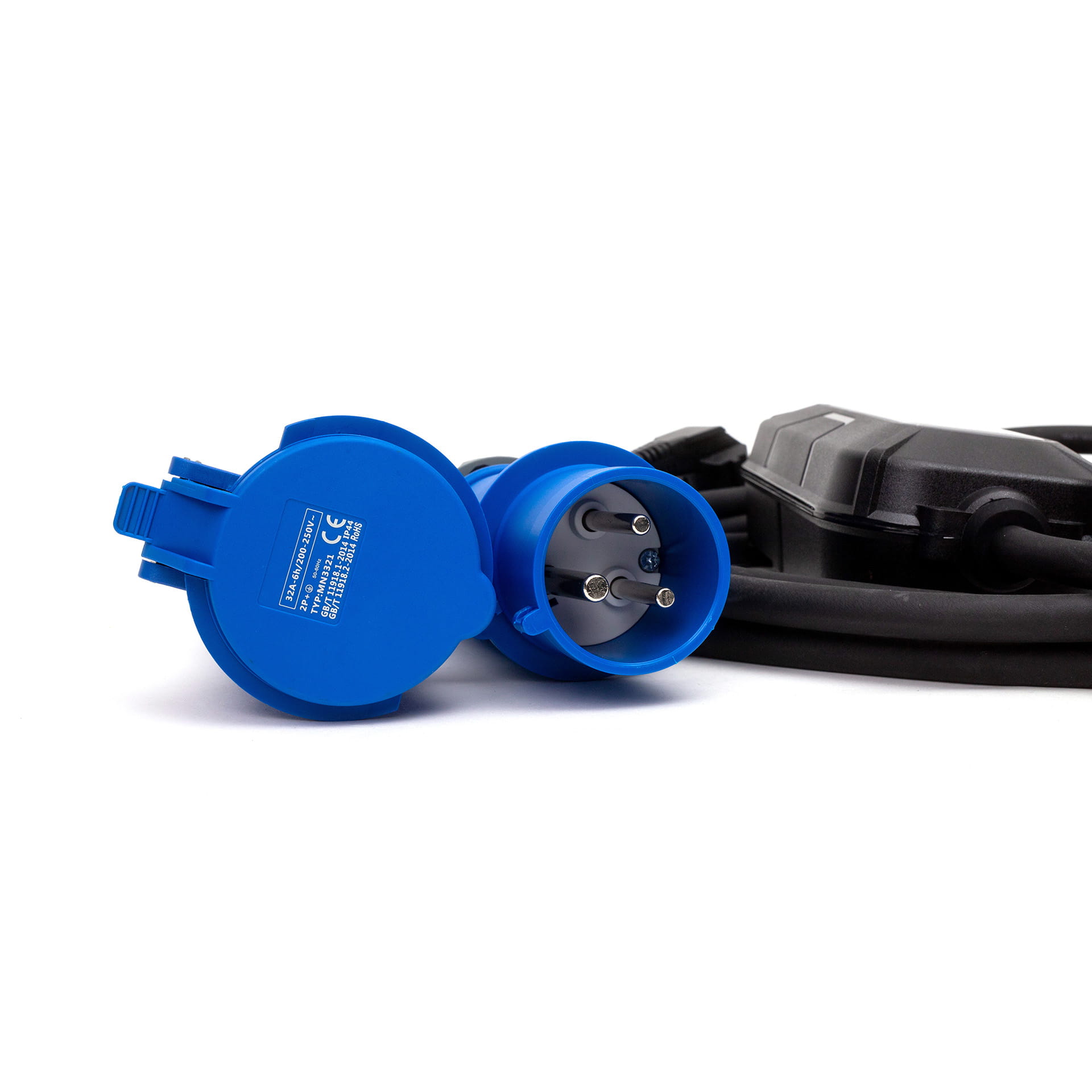

Standard European plug (blue CEE) 1 phase

Cable length: 5 meters

Rated input voltage: 85-230 V AC

Rated output voltage: 85-230 V AC

Rated current: 32A default - adjustable 8A/10A/13A/16A/32A

Rated power: up to 7.4 kW - I phase

Cable insulation resistance: >1000MOhm (DC500V)
Contact resistance: 0.5 m? MAX
Housing fire class: UL94V-0
Wire harness size: 3*6mm2+1*0,5mm2
LED display showing temperature, charging time and actual current
Leakage protection
Overvoltage or undervoltage protection
Overload protection
Lightning protection
Overheat protection

Seal class: IP55


See how our chargers look and work:
