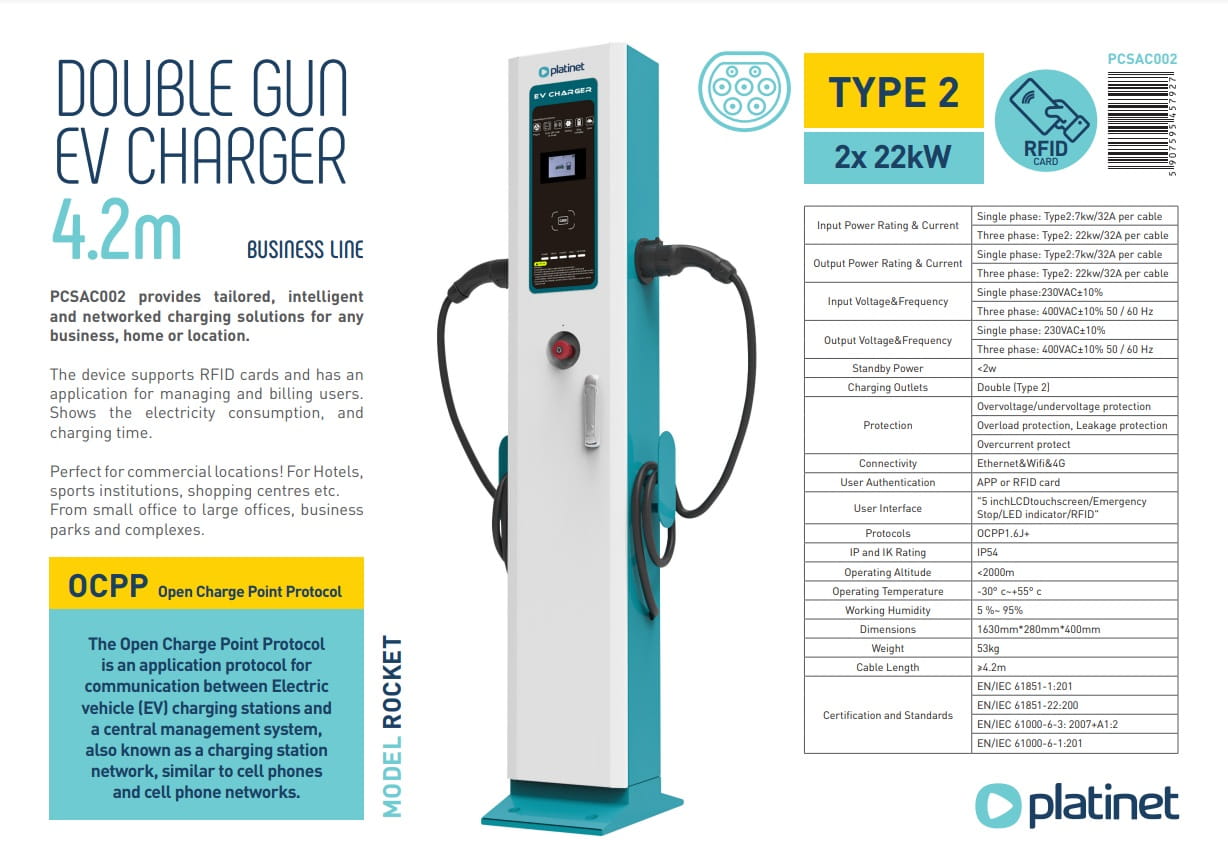

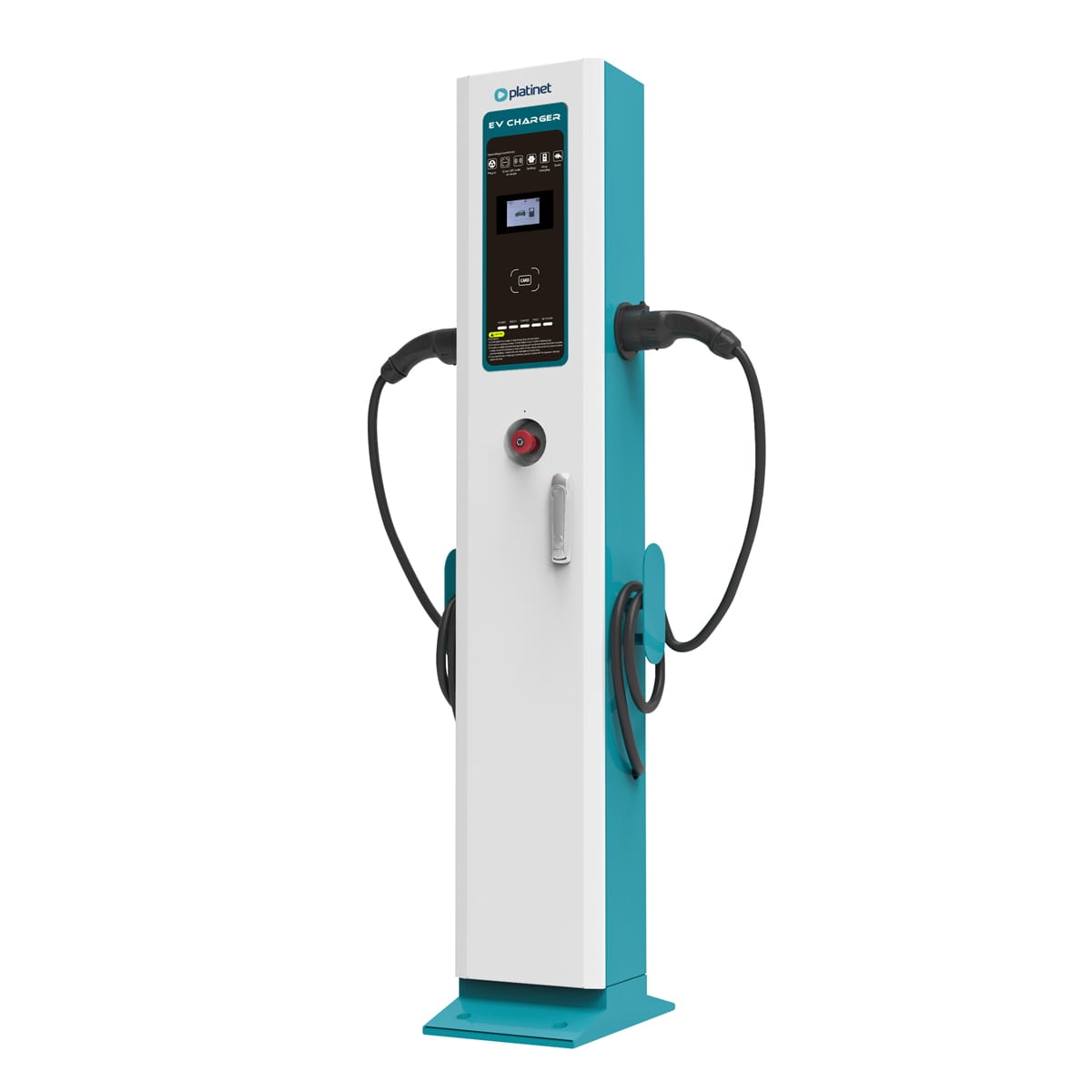

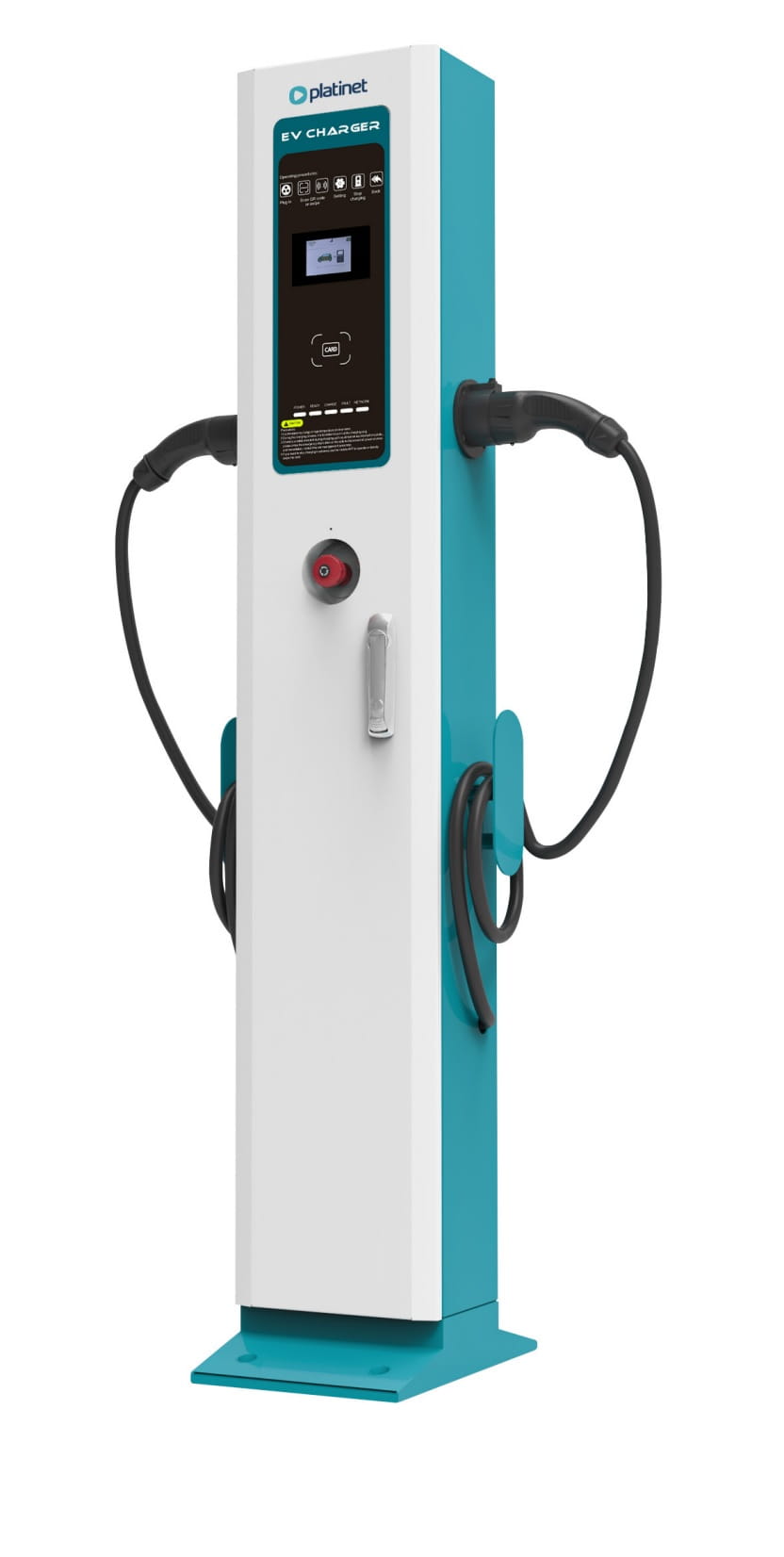

PLATINET EV/PHEV AC TYPE 2 2x22KW DOUBLE GUN CHARGER BUSINESS LINE [45792]
Availability:
temporarily unavailable
Price:
€3,541.59
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Vendor:
Product code:
EV_PCSAC002
Description
PCSAC002 provides tailored, intelligent and networked charging solutions for any business, home or location.
The device supports RFID cards and has an application for managing and billing users.
Shows the electricity consumption, and charging time.
Perfect for commercial locations! For Hotels, sports institutions, shopping centres etc.
From small offi ce to large offi ces, business parks and complexes.
Input Power Rating & Current Single phase: Type2:7kw/32A per cable
Three phase: Type2: 22kw/32A per cable
Output Power Rating & Current Single phase: Type2:7kw/32A per cable
Three phase: Type2: 22kw/32A per cable
Input Voltage&Frequency Single phase:230VAC±10%
Three phase: 400VAC±10% 50 / 60 Hz
Output Voltage&Frequency Single phase: 230VAC±10%
Three phase: 400VAC±10% 50 / 60 Hz
Standby Power <2w
Charging Outlets Double (Type 2)
Protection:
Overvoltage/undervoltage protection
Overload protection, Leakage protection
Overcurrent protect
Connectivity Ethernet&Wifi &4G
User Authentication APP or RFID card

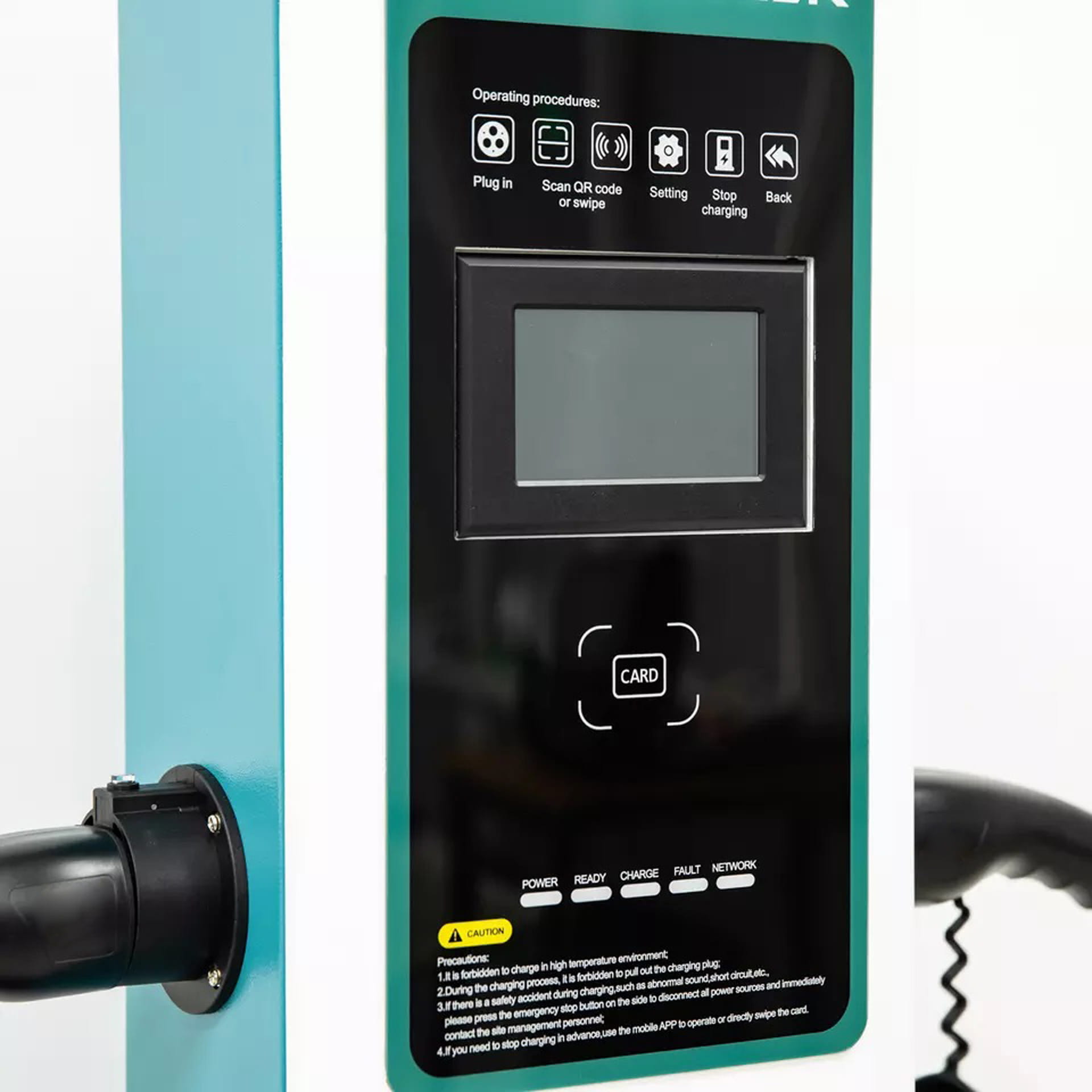

User Interface "5 inchLCDtouchscreen/Emergency
Stop/LED indicator/RFID"
Protocols OCPP1.6J+
IP and IK Rating IP54
Operating Altitude <2000m
Operating Temperature -30° c~+55° c
Working Humidity 5 %~ 95%
Dimensions 1630mm*280mm*400mm
Weight 53kg
Cable Length ?4.2m
Certifi cation and Standards:
EN/IEC 61851-1:201
EN/IEC 61851-22:200
EN/IEC 61000-6-3: 2007+A1:2
EN/IEC 61000-6-1:201
