PLATINET EV DC CHARGING STATION 30KW SINGLE GUN CCS2 BISINESS LINE [45806]
Availability:
dostępny na zamówienie
Dispatched within:
3 miesiące
Price:
€7,083.42
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Vendor:
Product code:
EV_PDC30KWX
Description

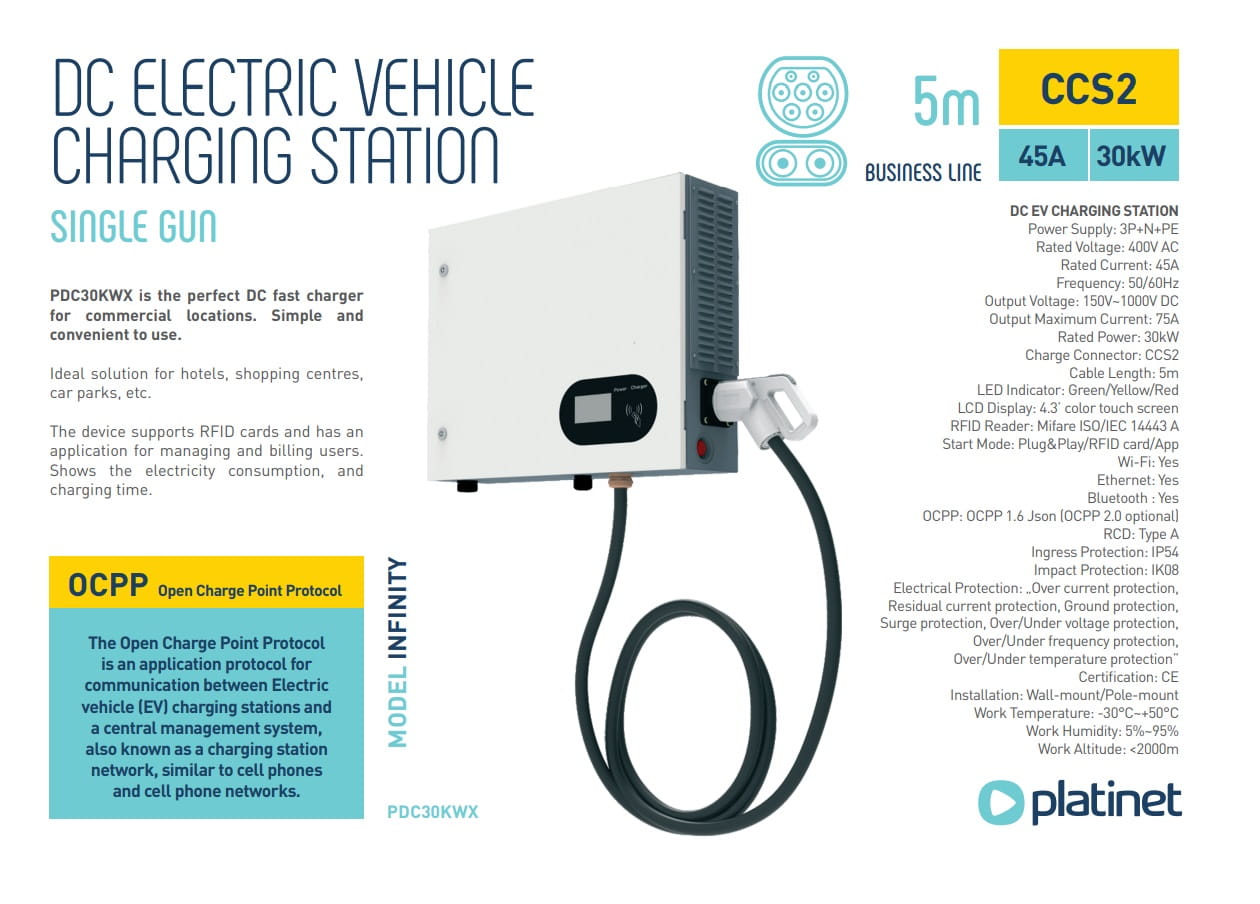

PDC30KWX is the perfect DC fast charger
for commercial locations. Simple and
convenient to use.
Ideal solution for hotels, shopping centres,
car parks, etc.
The device supports RFID cards and has an
application for managing and billing users.
Shows the electricity consumption, and
charging time.
DC EV CHARGING STATION
Power Supply: 3P+N+PE
Rated Voltage: 400V AC
Rated Current: 45A
Frequency: 50/60Hz
Output Voltage: 150V~1000V DC
Output Maximum Current: 75A
Rated Power: 30kW
Charge Connector: CCS2
Cable Length: 5m
LED Indicator: Green/Yellow/Red
LCD Display: 4.3’ color touch screen
RFID Reader: Mifare ISO/IEC 14443 A
Start Mode: Plug&Play/RFID card/App
Wi-Fi: Yes
Ethernet: Yes
Bluetooth : Yes
OCPP: OCPP 1.6 Json (OCPP 2.0 optional)
RCD: Type A
Ingress Protection: IP54
Impact Protection: IK08
Electrical Protection: „Over current protection,
Residual current protection, Ground protection,
Surge protection, Over/Under voltage protection,
Over/Under frequency protection,
Over/Under temperature protection”
Certifi cation: CE

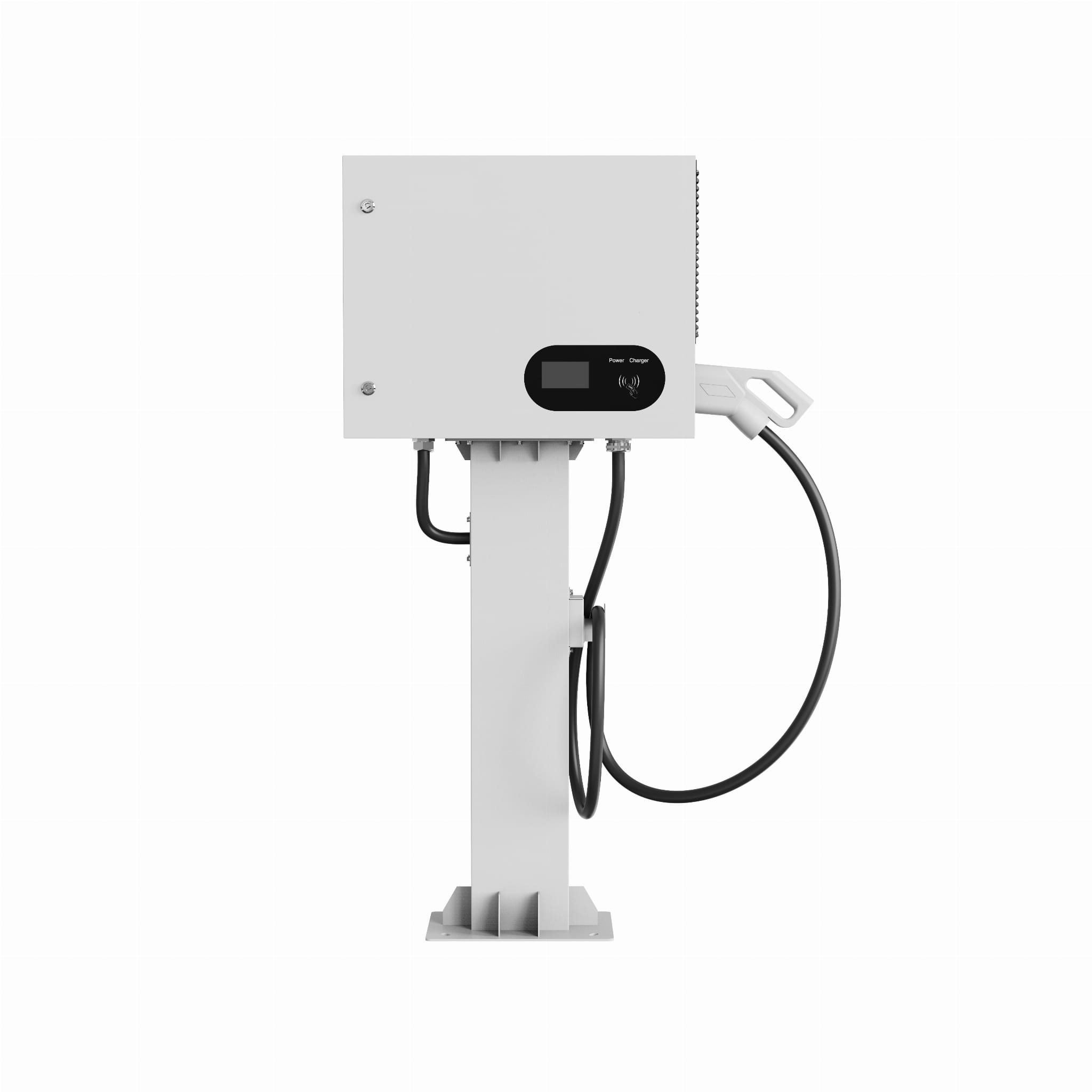

Installation: Wall-mount/Pole-mount
Work Temperature: -30°C~+50°C
Work Humidity: 5%~95%
Work Altitude: <2000m
for commercial locations. Simple and
convenient to use.
Ideal solution for hotels, shopping centres,
car parks, etc.
The device supports RFID cards and has an
application for managing and billing users.
Shows the electricity consumption, and
charging time.
DC EV CHARGING STATION
Power Supply: 3P+N+PE
Rated Voltage: 400V AC
Rated Current: 45A
Frequency: 50/60Hz
Output Voltage: 150V~1000V DC
Output Maximum Current: 75A
Rated Power: 30kW
Charge Connector: CCS2
Cable Length: 5m
LED Indicator: Green/Yellow/Red
LCD Display: 4.3’ color touch screen
RFID Reader: Mifare ISO/IEC 14443 A
Start Mode: Plug&Play/RFID card/App
Wi-Fi: Yes
Ethernet: Yes
Bluetooth : Yes
OCPP: OCPP 1.6 Json (OCPP 2.0 optional)
RCD: Type A
Ingress Protection: IP54
Impact Protection: IK08
Electrical Protection: „Over current protection,
Residual current protection, Ground protection,
Surge protection, Over/Under voltage protection,
Over/Under frequency protection,
Over/Under temperature protection”
Certifi cation: CE
Installation: Wall-mount/Pole-mount
Work Temperature: -30°C~+50°C
Work Humidity: 5%~95%
Work Altitude: <2000m
