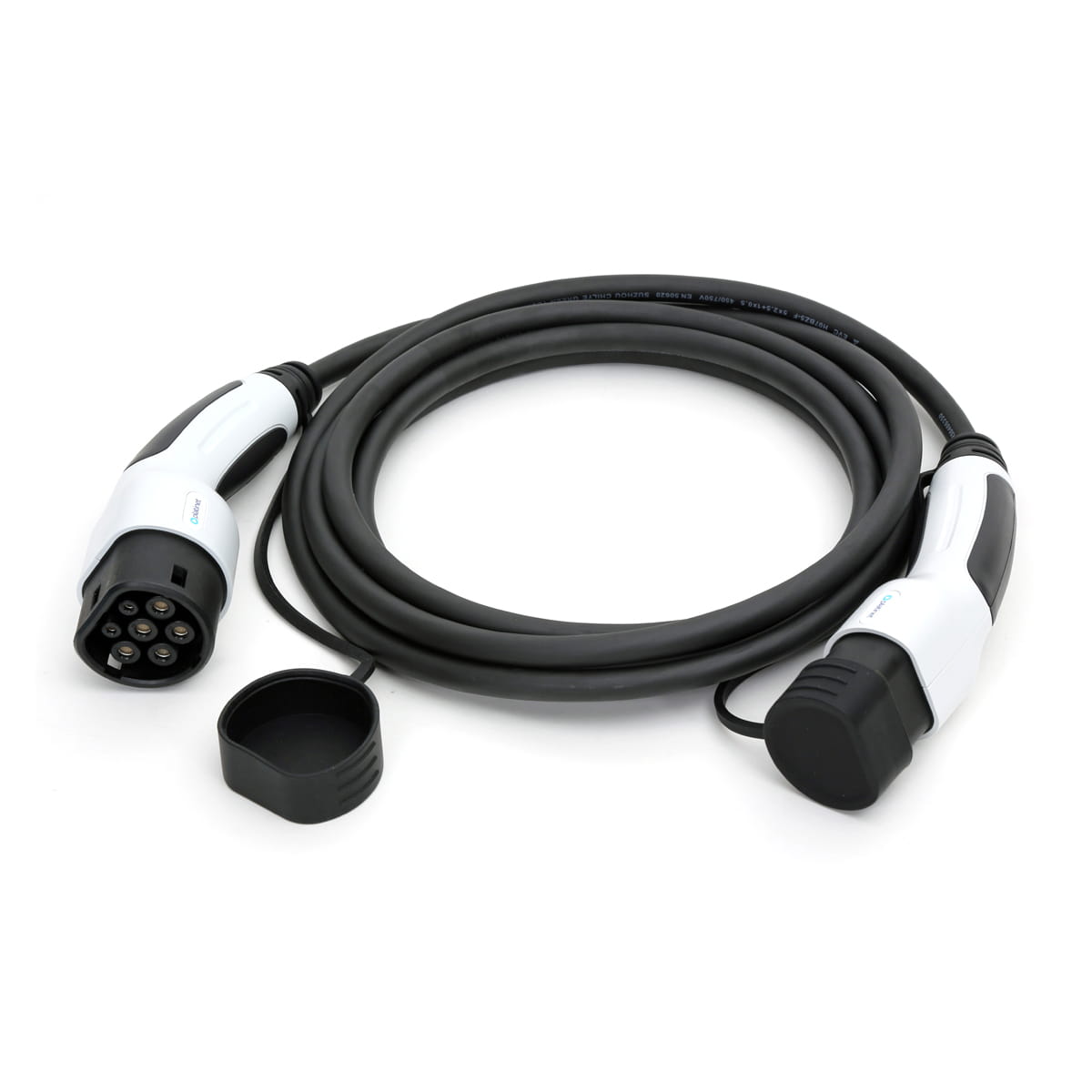

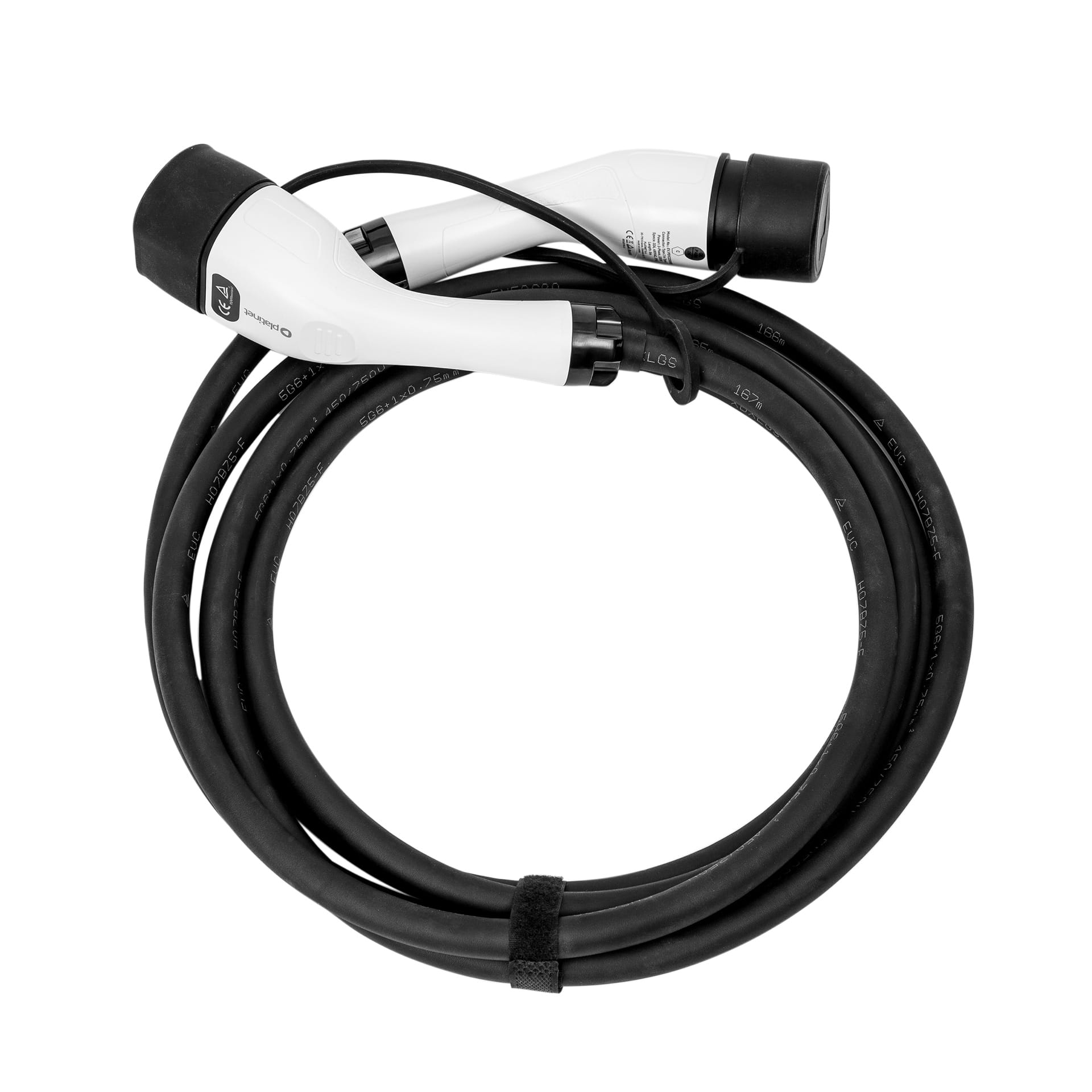

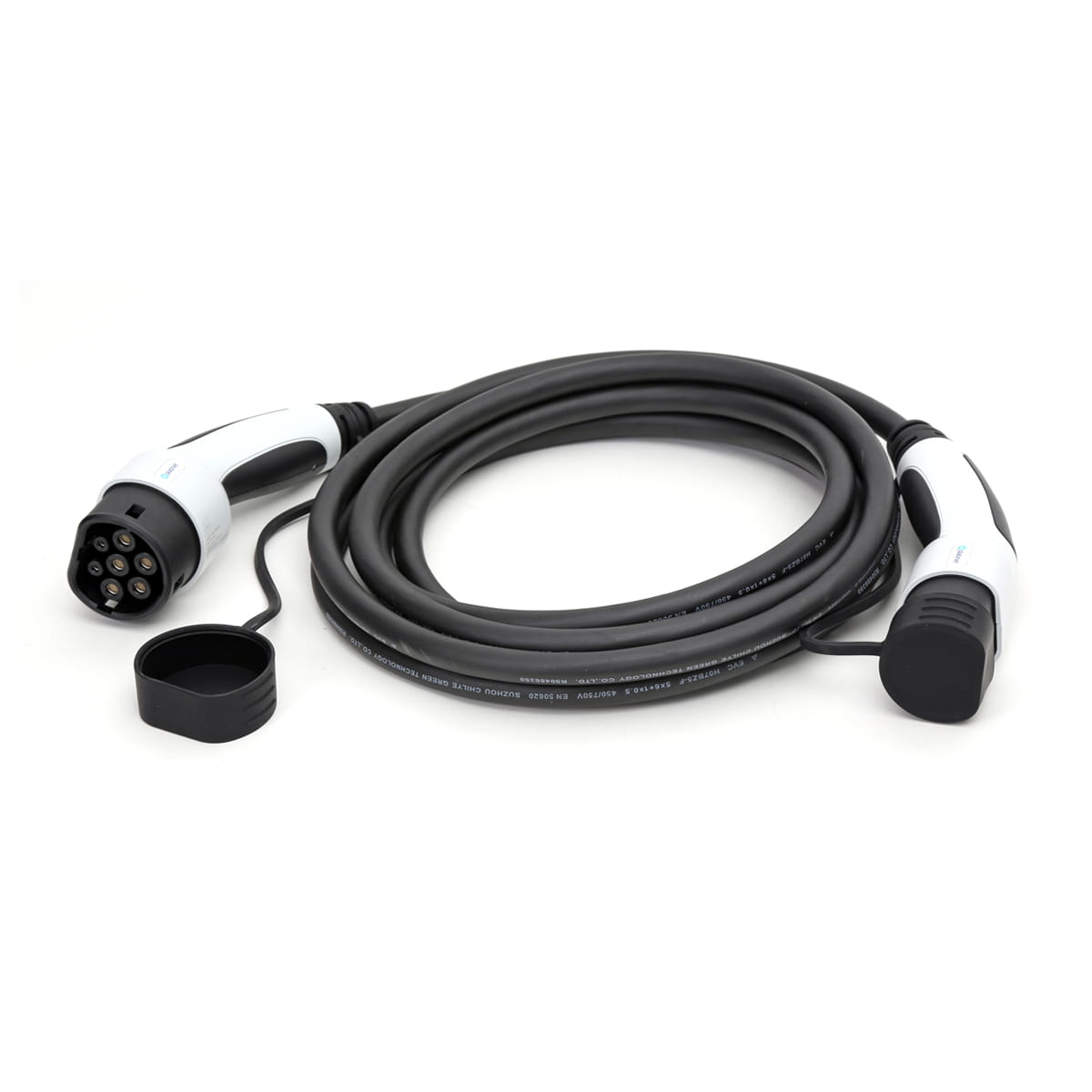

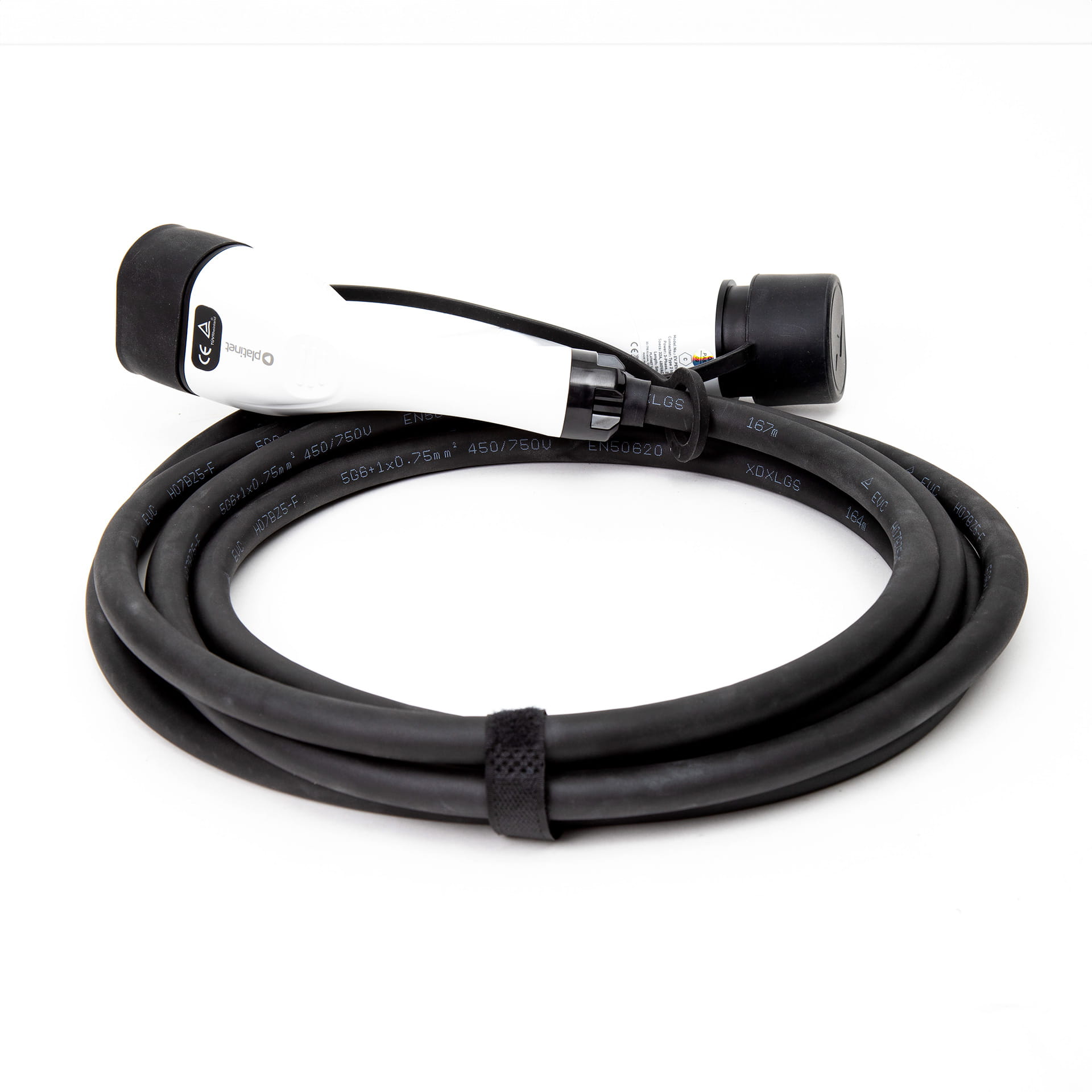

PLATINET EV CHARGING CABLE TYPE 2 22KW 5M BLACK [45786]

High-quality Type 2 charging cable for electric vehicles

Electromobility is becoming an increasingly important part of our everyday reality. Seeing an electric car on the road is no longer unusual, and the number of charging stations continues to grow. Some of them require users to have their own charging cable, which is why we have added a cable to our offer that meets the growing expectations of EV users.

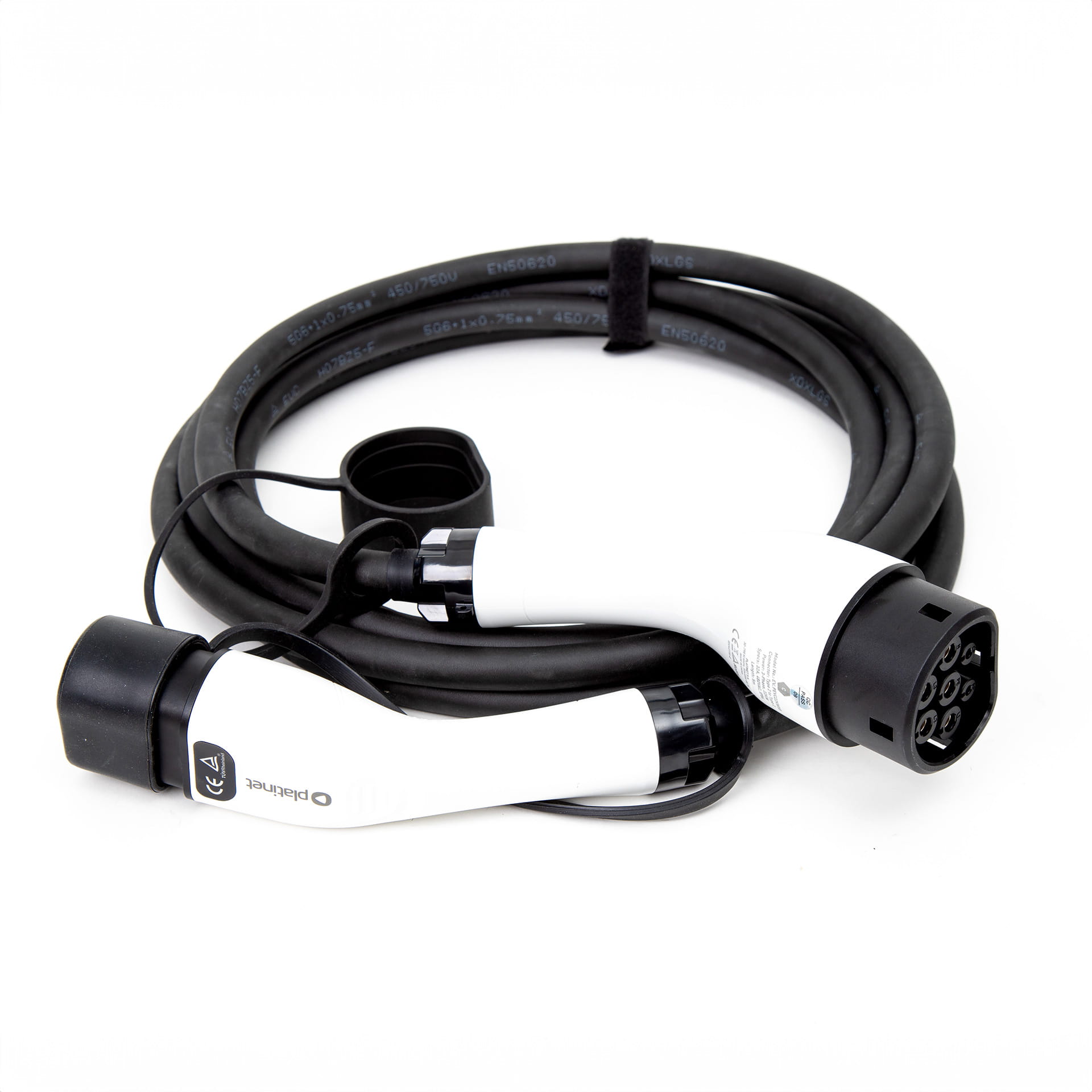

With the 5-meter-long PEVC22KW5B cable, you can charge your vehicle with up to 22 kW of power.

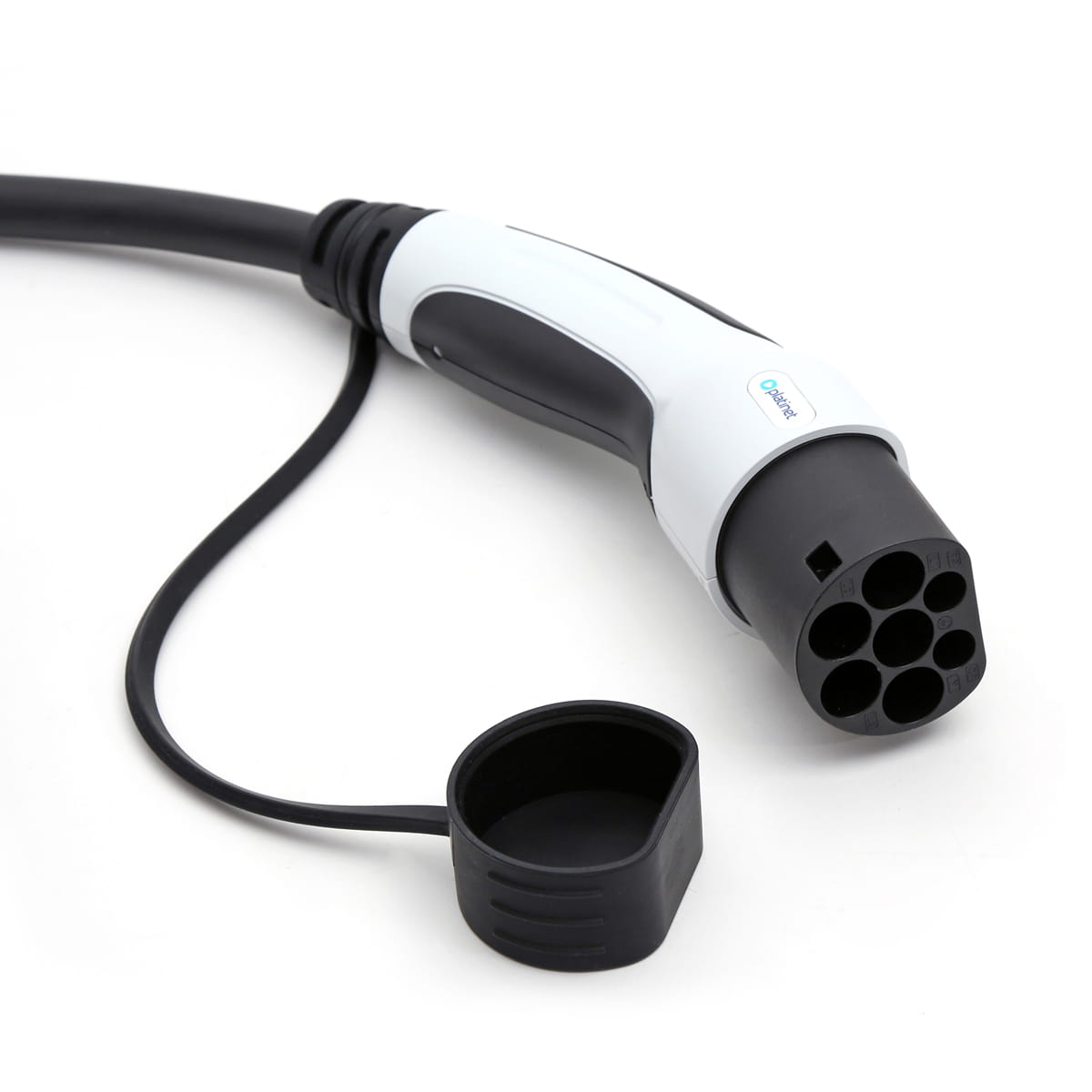

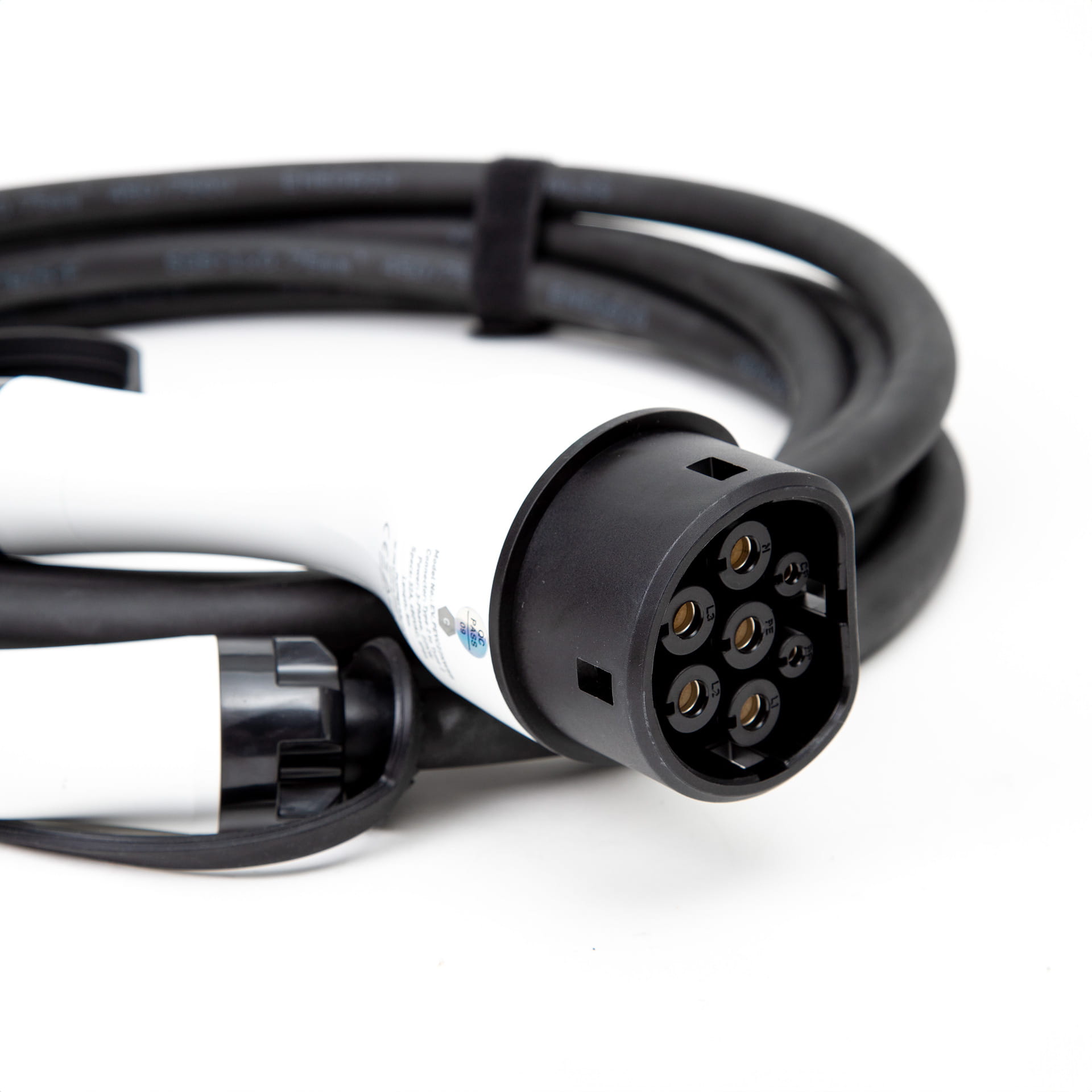

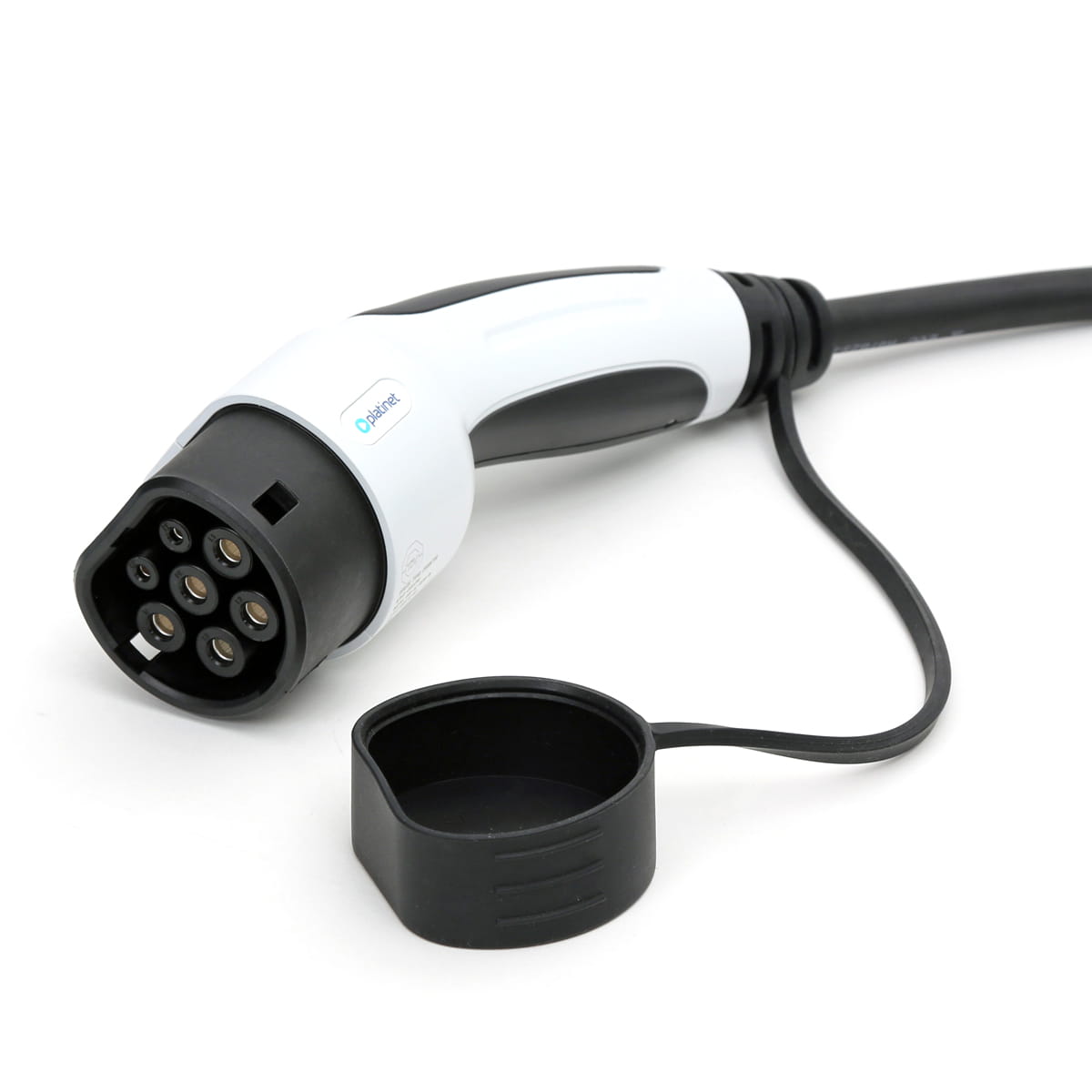

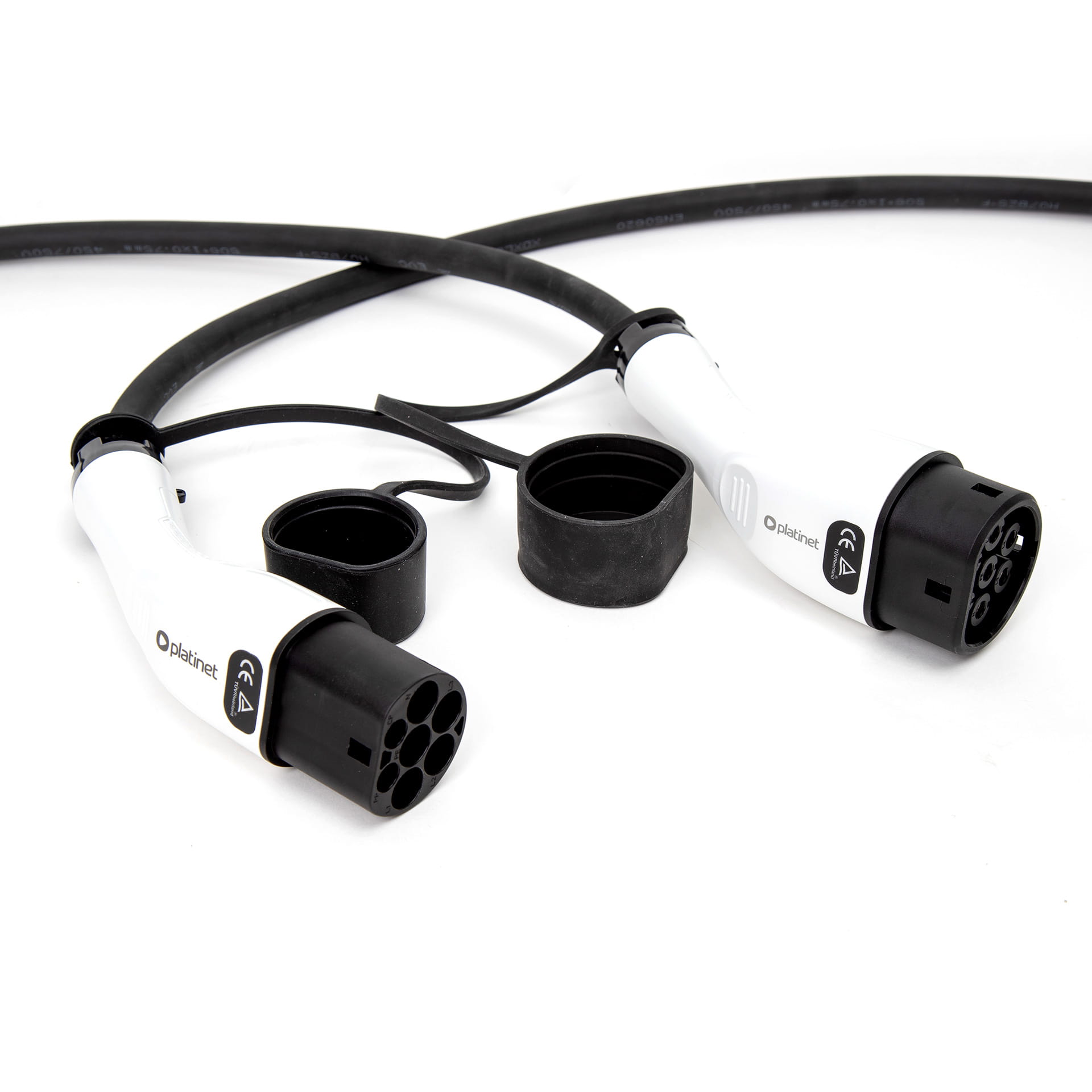

The cable is made of lightweight, flexible, and durable material. It is resistant to both low and high temperatures. The high-quality plugs are manufactured using one-piece molding technology from highly durable material.

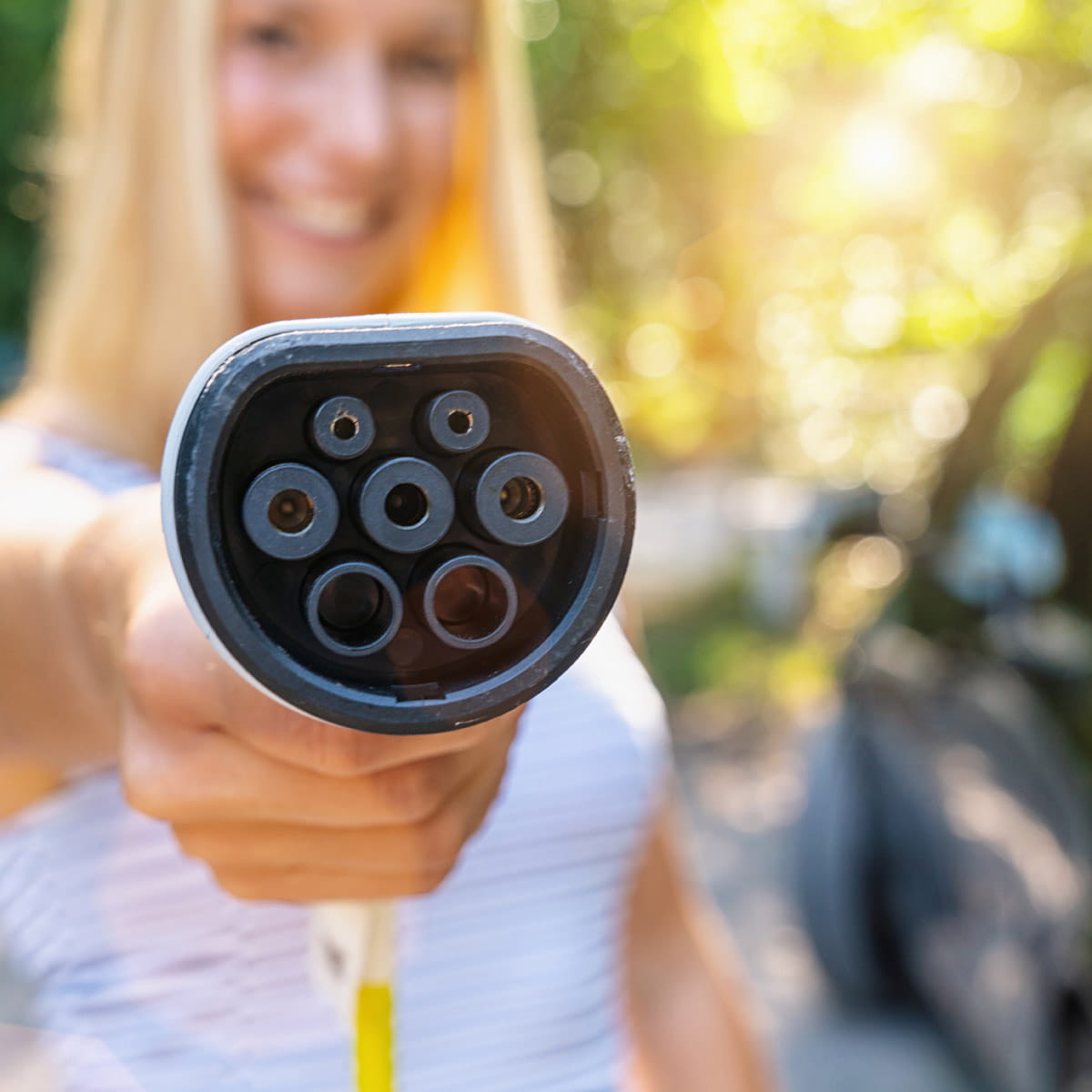

This charging cable is designed for vehicles equipped with a Type 2 charging socket.

Technical specifications:
Phase / rated current: 3-phase / 16 A
Rated voltage / power: 480 V / 22 kW
Cable dimensions: 5x6.0 mm2 + 2x0.5 mm2
OD (mm): 16.5 +/- 0.4
Protection rating: IP54
Flame resistance rating: 94 V-0
Insulation resistance: > 1000 M? (DC 500 V)
Terminal temperature rise: < 50 K
Maximum voltage withstand: 2000 V
Contact resistance: max. 0.5 m?
Coupled insertion force: > 45 N < 80 N
Operating temperature: -35°C to 50°C
